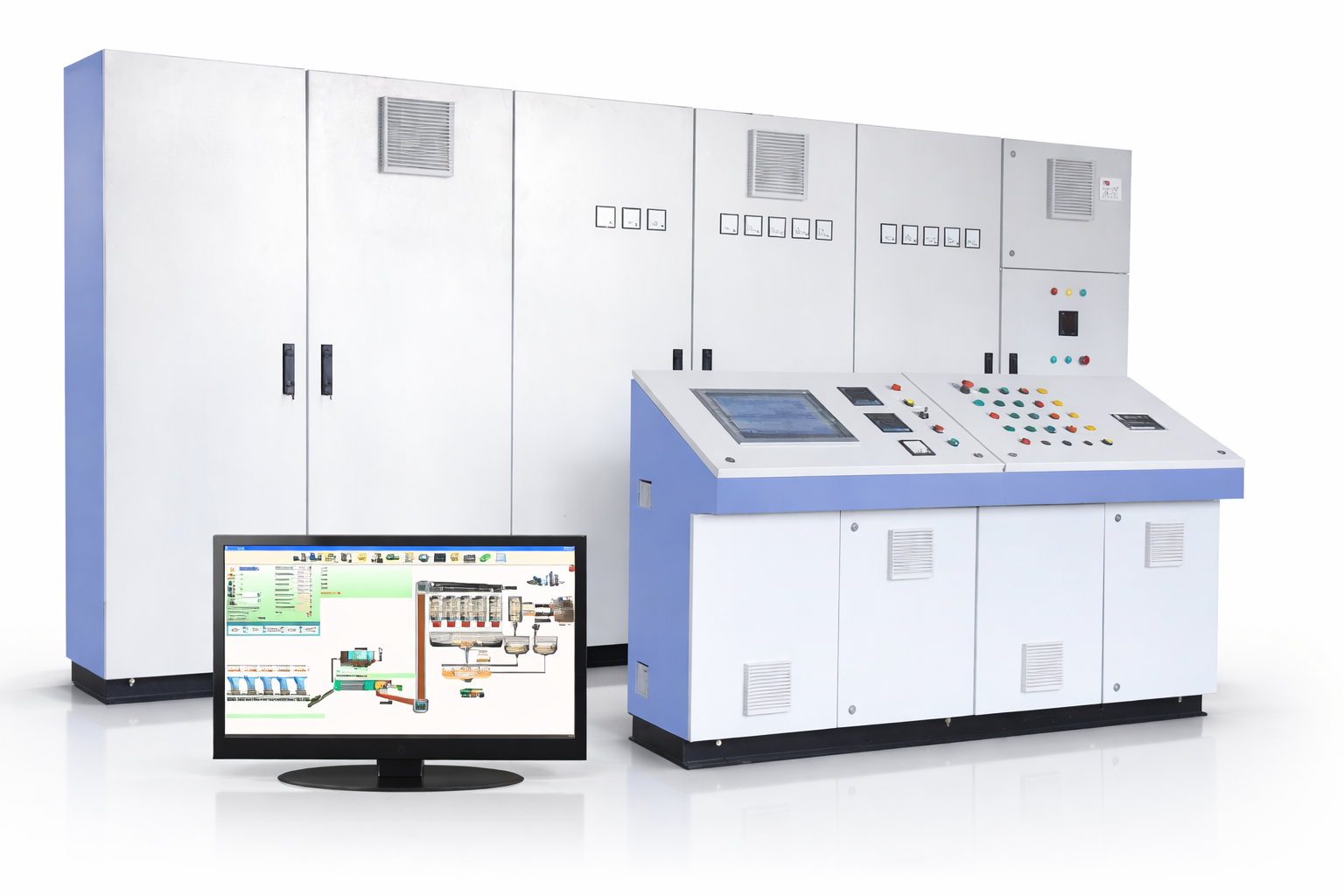

Asphalt Batch Mix Plant Control Panel
PLC-SCADA BASED AUTO CONTROL PANEL WITH COMPUTER & PRINTER
Asphalt Batch Mix system uses touch screen PLC technology with SCADA System to integrate all the batching functions into one integrated controller, which provides real-time batching control on a PLC and all in one PC. Air Condition Control room is provided for plant control. The panel is divided into two main parts. MCC and control desk.
In MCC, all starters and Drivers are located. In the control desk PLC, HMI and other controls are located; both panels are interconnected and tested. All motors start/stop, complete batching control and all material handling motors.
Feeders, Asphalt pump and filler screw are controlled from the desk. The operator can easily operate the whole plant from the desk. Computer LED & HMI units allow setting and viewing data. The operator can enter plant settings like gradation % or select recipe, Batch Weight, Load, Temp, Units, etc. We get all types of reports and online monitoring through SCADA systems with a computer and a printer.
Control Feature
- All control operations can be controlled from a single central location
- ABP HMI & Controls. The process which is unsure to achieve the required performance
- ABP SCADA stores all data in the database server, thus if requires the data can be accessed in the future to improve performance
Range
- Control Panel ( PLC + HMI Type ) For Asphalt Batch Mix Plant
- Control Panel ( PLC + HMI Type ) For Asphalt Batch Mix Plant With Printer
- Control panel ( PLC + HMI + SCADA + PC + Printer ) For Asphalt Batch Mix Plant
- Control panel ( PLC + HMI + SCADA + Touch Screen PC + Printer ) for Asphalt Batch Mix Plant
